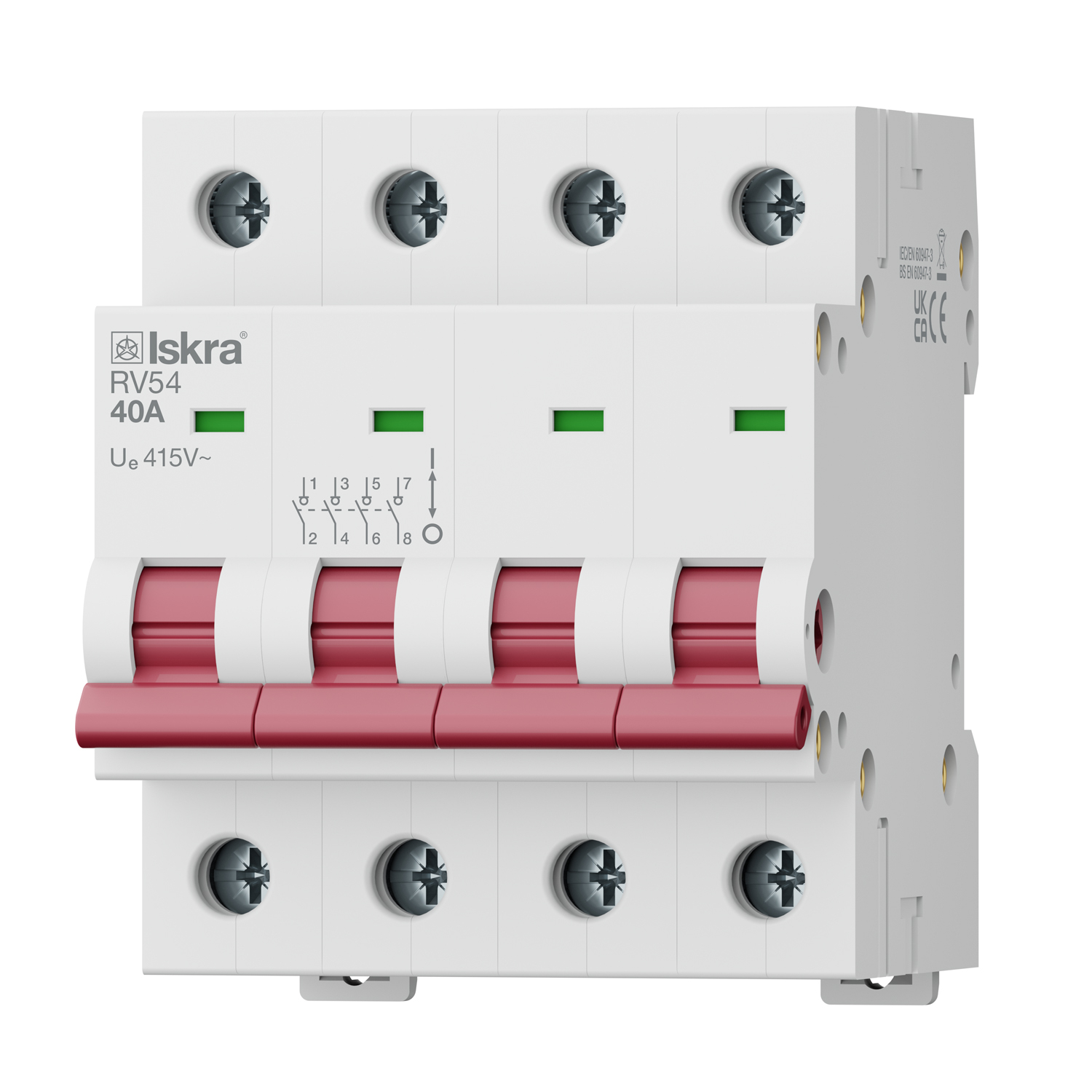

RV54 40A
786100691000 EAN: 3838733083703
521411
RV54 40A
Login for price and stockTechnical specifications
| Voltage type | AC |
| Switching function | Off switch |
| Built-in depth (mm) | 66 |
| Nominal rated current (A) | 40 |
| Nominal rated voltage (V) | 400/415 |
| Number of normally open contacts | 4 |
| Number of normally closed contacts | 0 |
| Number of change-over contacts | 0 |
| Number of poles | 4 |
| Lamp type | Not applicable |
| Short-circuit breaking capacity (Icw) (kA) | 1.5 |
| Rated switching capacity (kA) | 2.5 |
| Width in number of modular spacings | 4 |
| Colour calotte | Red |
| Lamp socket | Not applicable |
| Min. rated voltage (V) | 400 |
| Degree of protection (IP) | IP20 |
